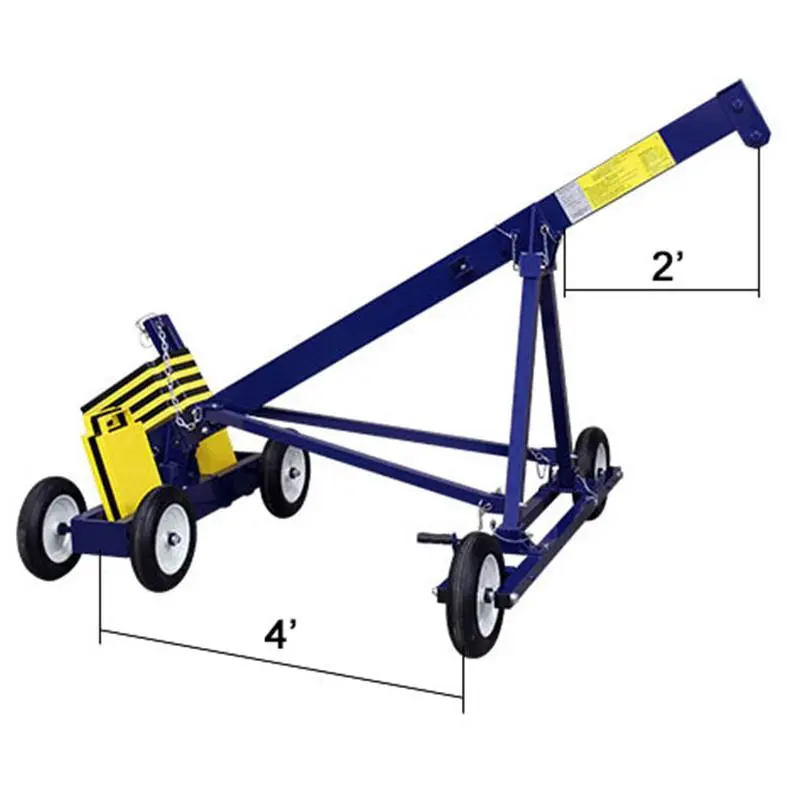

About the MIO Rolling Roof Rig – 2 Foot x 4 Foot
The Rolling Roof Rig from MIO is safe and durable. All joints are trussed and welded for maximum strength. The rig is made from aluminum and has stainless steel quick connect pins for fast assembly on location. To work around obstacles on the roof, remove the lower stabilization beams then easily reattach.
Specs:
- Outreach – 2′
- Distance from front to rear wheels – 4′
- Counterweight – 504 lbs (12@42)
- Unit weight – 130 lbs
- Maximum working load – 250 lbs
- Working load w/ tools – 300 lbs
- Tested Static Load (CAL OSHA) – 1000 lbs
- Locking breaks – front and rear wheels – 2″
- Forged eyebolts for tie-back diam. – 1/2″
- Counterbalance safety factor – 4:1
- Distance from roof to anchor point 52″
- Inside parapet wall clearance at shoulder – 43″
- 13″ diameter Pneumatic Rubber tires – 6
