Description

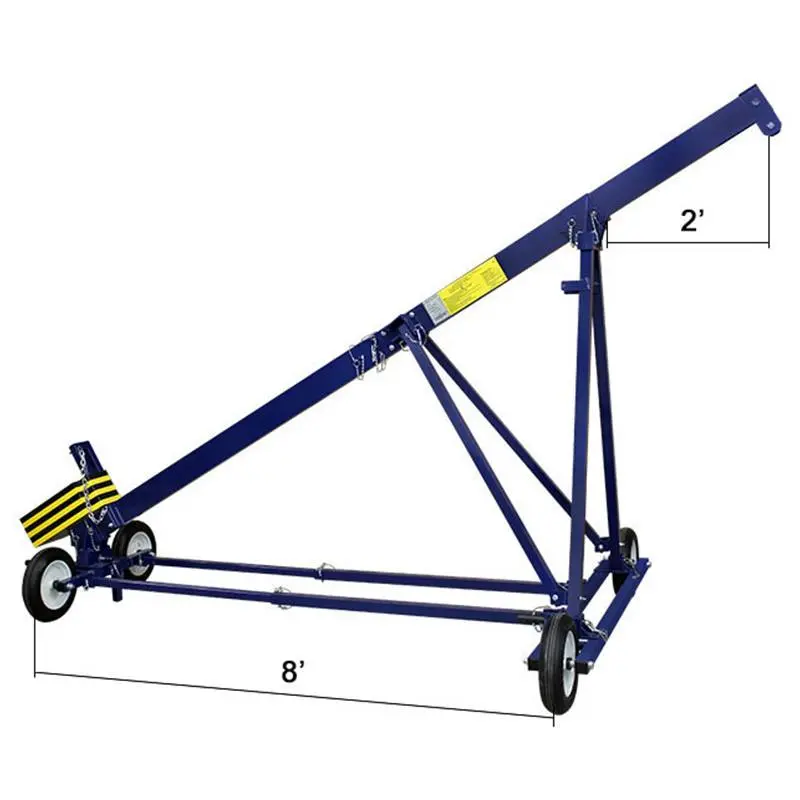

About the MIO Rolling Roof Rig – 2 Foot x 8 Foot
Get one of the most durable and safe Rolling Roof Rig around from MIO. All joints are trussed and welded for maximum strength. The rig is made from aluminum and includes stainless steel quick connect pins for fast assembly. This easily moves to your job site and assembles quickly. Detach and reattach the lower stabilization beams in seconds to get around obstacles.
Specs:
- Outreach – 2′
- Distance from front to rear wheels – 8′
- Counterweight – 252 lbs (6@42)
- Unit weight – 145 lbs
- Maximum working load – 250 lbs
- Working load w/ tools – 300 lbs
- Tested Static Load (CAL OSHA) – 1000 lbs
- Locking breaks – front and rear wheels – 2″
- Forged eyebolts for tie-back diam. – 1/2″
- Counterbalance safety factor – 4:1
- Distance from roof to anchor point – 80″
- Inside parapet wall clearance at shoulder – 70″
- 13″ diameter Pneumatic Rubber tires – 4
